M12 lens | fisheye lens wiht image circle Φ6.1mm and more than 180degree, 5 megapixel lens for CCTV.
M12 lens, Fisheye lens S6019020 for CCTV application. It has a big image circle Φ6.1 and more than 180degree wide angle of view.
| IMAGE FORMAT | 1/3″ Φ6.1 |
| FOCAL LENGTH | 1.9mm |
| F.O.V.@AR0330 | 180°(D=5.82) |
| 151°(H=5.07) | |
| 82°(V=2.85) | |
| RESOLUTION | 5 MP |
| F-THETA DIST. | <-9% |
| APERTURE | F2.0 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.2m |
| T.T.L. | 32.7mm |
| STRUCTURE | 6G+IRCF |

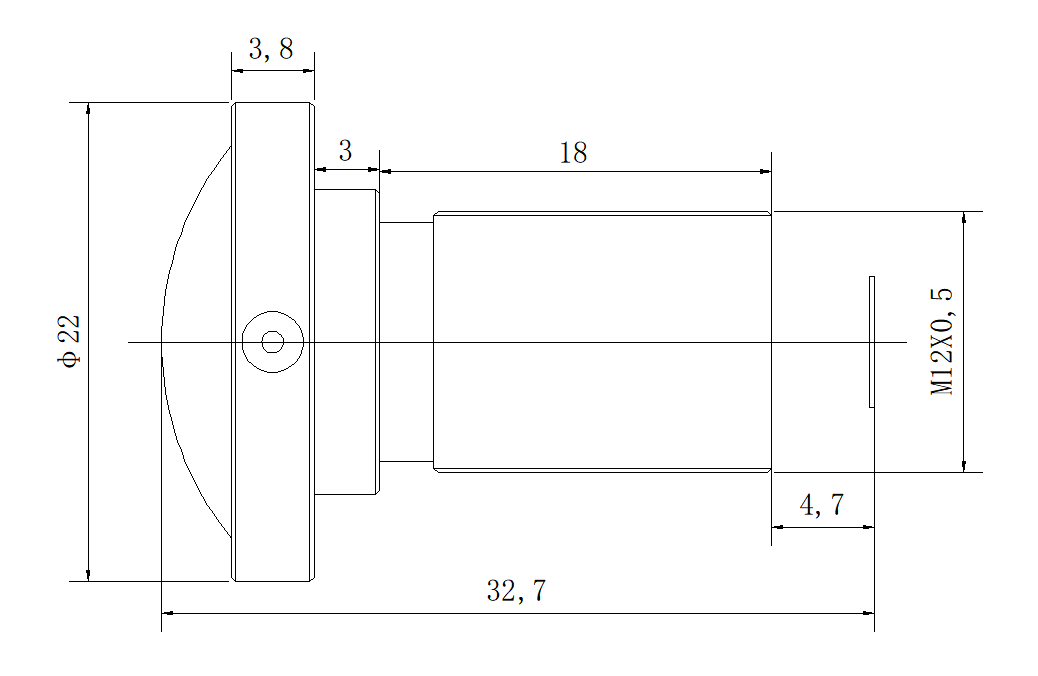

M12 lens, Fisheye lens S6019020
Online contact
| FNo. | |
|---|---|
| Max Dist. | |
| FEATURE | |
| E.F.L. | |
| H. F.O.V. | |
| SENSOR | |
| IRIS | |
| MARK | |
| MOUNT | |
| RESOLUTION | |
| T.T.L.(mm) |
